Name

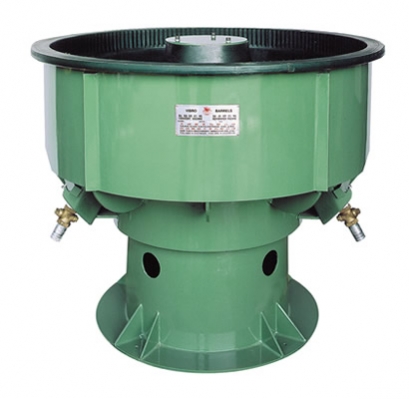

3-DIMENSIONAL VIBRATORY SMALL CENTRAL (VB-E)
Purpose
1.The finishing capacity and space is bigger than other
kinds of machines. The Capacity has increase to 140%,
and the barrel has increase,which can grind bigger
work pieces.
2.This machine has eliminate collision between center
circumference and work pieces,which could reduce the
work pieces'shape change,imprint of beating or spot.
2023 UK perfect replica cartier watches with high quality on sale.

1:1 best replica watches UK in discount from online store. Fast shipping. Money back guaranty.

UK cheap super clone watches with high quality for men and women online.
Specification


MODEL VOLUME MOTOR DIAMETER HEIGHT WEIGHT
VB-25 25L 1/2HP 600mm 615mm 95KGS
VB-50 50L 1HP 700mm 850mm 210KGS
VB-100 100L 2HP 900mm 1000mm 370KGS
VB-150 150L 3HP 1050mm 1100mm 450KGS
VB-250 250L 5HP 1200mm 1250mm 600KGS
VB-350 350L 7.5HP 1350mm 1400mm 835KGS
VB-500 500L 10HP 1500mm 1550mm 1120KGS
VB-700 700L 12HP 1750mm 1770mm 1750KGS
VB-1000 1000L 15HP 1900mm 2000mm 2200KGS
