Name

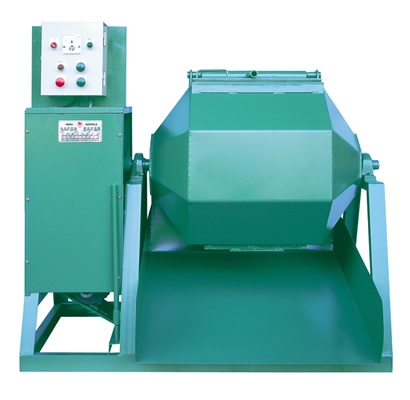

HEXAGONAL, OCTAGON BARREL MACHINES
General
1.SUtable for forging and casting parts, which need strong abrasive force.
2.To remove black points and film, and grind the edges of parts.
Purpose
1.Use horizontal rotary barrels, the tub have with or without inside liner, can resist acid,
alkali, abrading and eliminate the impingement.
2.The tub without liner suits for steel ball or iron and steed, can add strong abraSve force.
3.The machine has the appropriate angle to discharge parts easily.
4.It is simple and convenient to process parts and has economical and cheaper cost.
replica uhren
2023 UK best replica watches can be found here.

You are worth the top fake watches UK with high quality!

With low price and high quality, the US cheap replica breitling watches are worth having!
Specification


MODEL VOLUME FILLNG MOTOR BARREL DIMENSION DIMENSION
L X W X H (mm)
WEIGHT
EBM-150 150L 75L 1 HP 530 X 760 2425 X 760 X 1365 300KGS
EBM-200 200L 100L 1 HP 570 X 850 2455 X 760 X 1365 350KGS
EBM-300 300L 150L 2 HP 730 X 800 2485 X 910 X 1365 500KGS
EBM-500 500L 250L 5 HP 810 X 970 2790 X 1060 X 1600 1100KGS
SBM-150 150L 75L 1 HP 450 X 750 2365 X 760 X 1365 300KGS
SBM-200 200L 100L 1 HP 510 X 750 2365 X 760 X 1365 350KGS
SBM-300 350L 175L 3 HP 630 X 900 2790 X 910 X 1600 550KGS
SBM-500 500L 250L 5 HP 750 X 900 2790 X 910 X 1600 1100KGS
