Home > Rotates Finishing Machines


Name

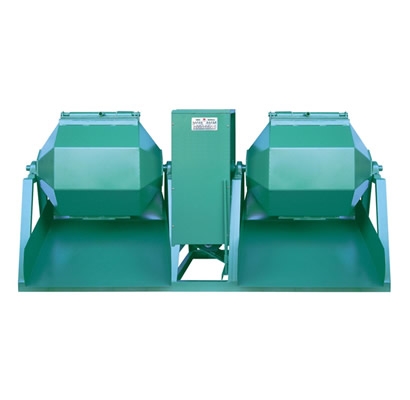

HEXAGONAL, OCTAGON BARREL MACHINES-雙聯
General
1.SUtable for forging and casting parts, which need strong abrasive force.
2.To remove black points and film, and grind the edges of parts.
Purpose
1.Use horizontal rotary barrels, the tub have with or without inside liner, can resist
acid, alkali,abrading and eliminate the impingement.
2.The tub without liner suits for steel ball or iron and steed, can add strong abraSve force.
3.The machine has the appropriate angle to discharge parts easily.
4.It is simple and convenient to process parts and has economical and cheaper cost.
kopi ure
You can buy 1:1 Swiss made fake watches UK here with low prices!

UK cheap rolex super clone watches are best in quality for men and women.

Swiss online replica watches UK at affordable prices for men and women.
Specification


MODEL VOLUME MOTOR BARREL DIMENSION DIMENSION
L X W X H (mm)
WEIGHT(KGS)
SBM-150-2 150L 2 HP 450 X 750 2400 X 1000 X 1400 410KGS
SBM-200-2 200L 2 HP 510 X 750 2400 X 1000 X 1400 480KGS
SBM-300-2 350L 3 HP 630 X 900 2800 X 1100 X 1600 750KGS
SBM-500-2 500L 5 HP 750 X 900 3000X 1300 X 1600 950KGS
EBM-150-2 150L 2 HP 530 X 760 2400 X 1000 X 1400 410KGS
EBM-200-2 200L 2 HP 570 X 850 2400 X 1000 X 1400 480KGS
EBM-300-2 350L 3 HP 730 X 800 2800 X 1100 X 1600 750KGS
EBM-500-2 500L 5 HP 810 X 970 3800X 1300 X 1600 950KGS
