POWERFUL HIGH SPEED CENTRIFUGIAL GRINDING MACHINES (TC-3600)
General
1.Suitable for polishing the small piece parts.
2.Especial finished parts need precision and have size
heat treat film available for film removal, debarring of casting parts.
Purpose
1.Long lasting, high effciency.
2.High grinding force and smooth abrasion.
3.Saving working time and manpower, no expert worker necessary, available for
continuousprocessing.
4.Not easily out of shape.
5.The rotation and revolution are now well designed as using the electronic controller
tosupport forward and reverse running and also included a break motor.
6.The tradition manpower rotate portion is now improved as much time saving and
less manpower, and also easy to handle.
replica horloges
Shop around. The best Swiss iwc fake watches UK with high quality are here. Read more details if you want.

Wish you buy UK cheap rolex replica watches from the discounted website. They are suitable for both men and women.

If you like forever classic fake watches, you cannot miss the best replica breitling watches UK.

Specification


MODEL WEIGHT VOLUME FILLING DIMENSION
L X W X H (mm)
MOTOR
TC-3600-20L 900KGS 20L 20L X 80% 1400 X 1250 X 1500 5HP
TC-3600-40L 1050KGS 40L 40L X 80% 1400 X 1250 X 1500 5HP
TC-3600-60L 1150KGS 60L 60L X 80% 1500 X 1300 X 1500 7.5HP

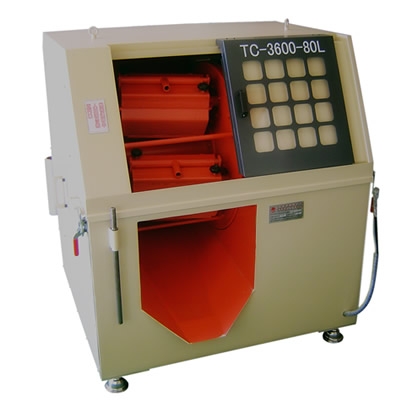

TC-3600-80L 1300KGS 80L 80L X 80% 1500 X 1300 X 1600 10HP
TC-3600-160L 2300KGS 160L 160L X 80% 1720 X 1430 X 2100 15HP
